| SPECIFICATIONS |
| MECHANICS |

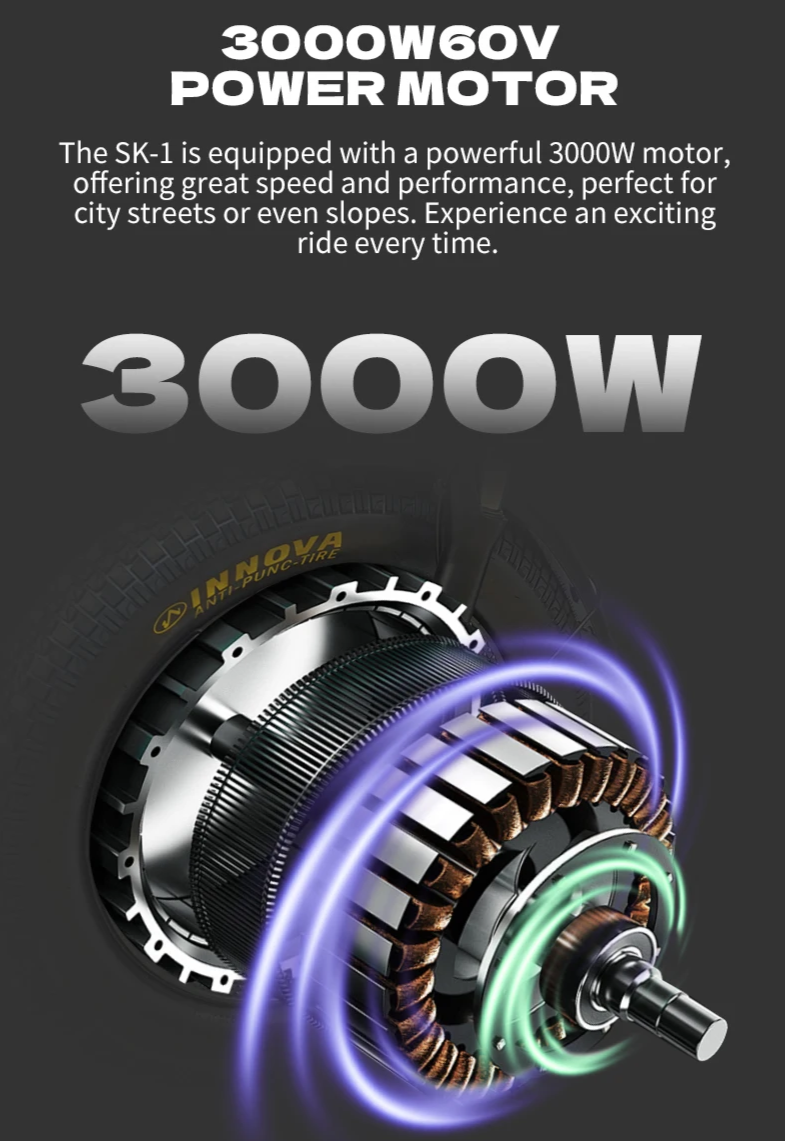

| Motor |
3000W High Speed Brushless Motor (Rear Hub) |
| Torque |
115Nm, 45° max climb |
| Speed gear |
Three levels: 1) pure electric 2) pedal assist 3) full pedal manual mode |
| Suspension |
Front |

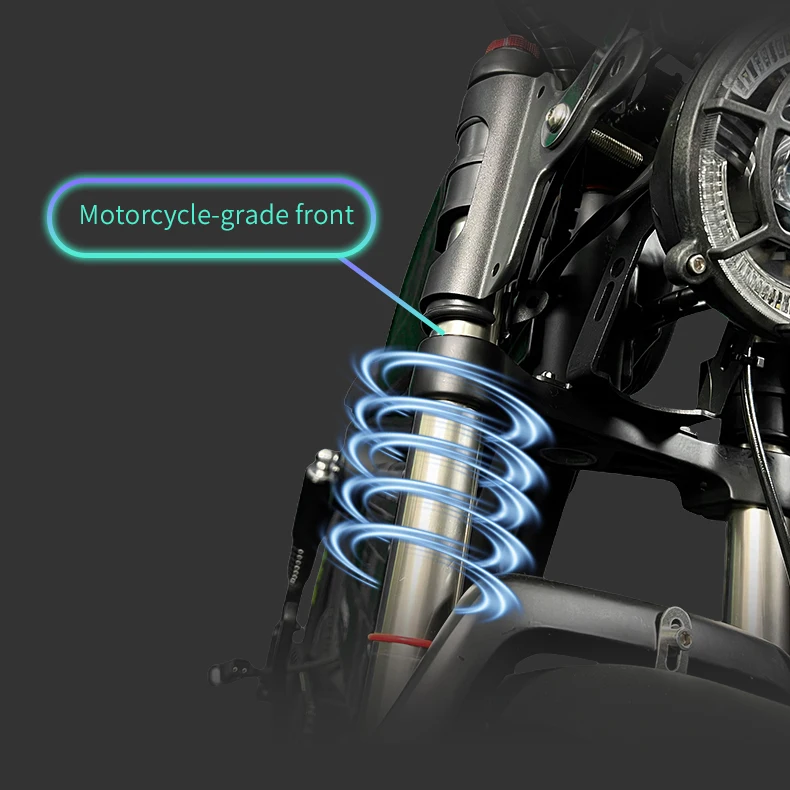

| Front shock absorber |
Adjustable hydraulic fork，Thickened front fork 34.27mm |

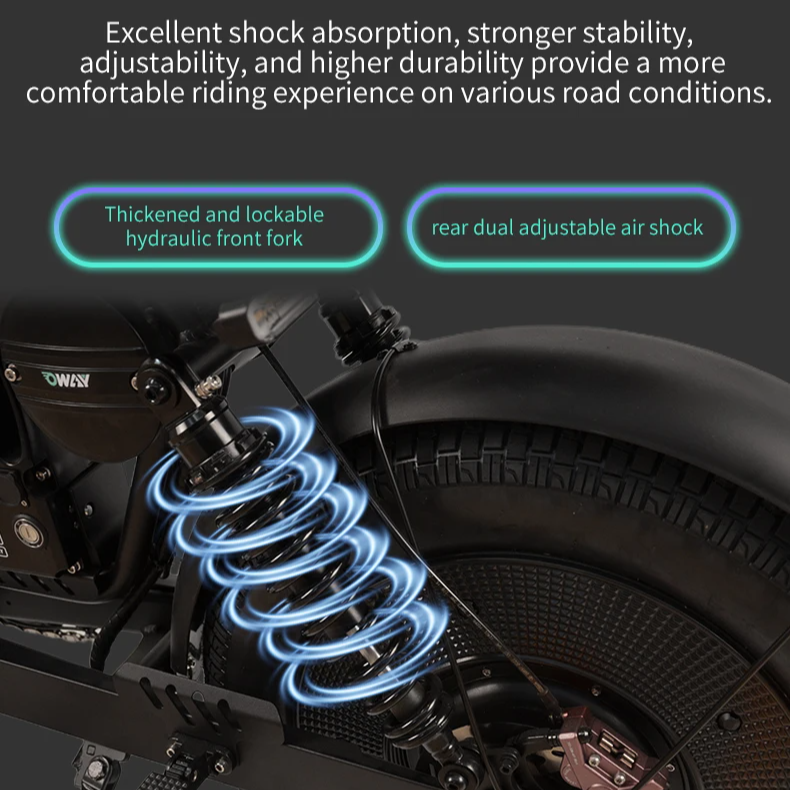

| Rear shock absorber |
Adjustable air shock |
| Sprocket |
36T aluminum alloy |

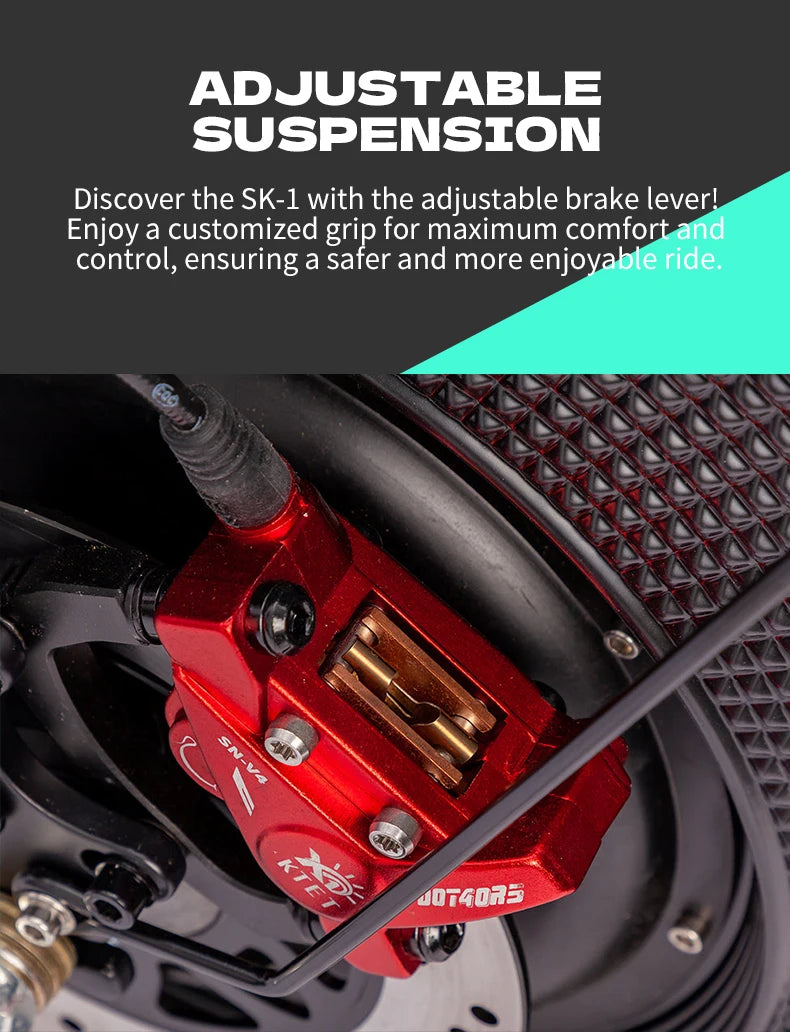

| Brake system |
Hydraulic disc brake, large dual pump 4-piston oil discs at the front and rear, adjustable brake levers |

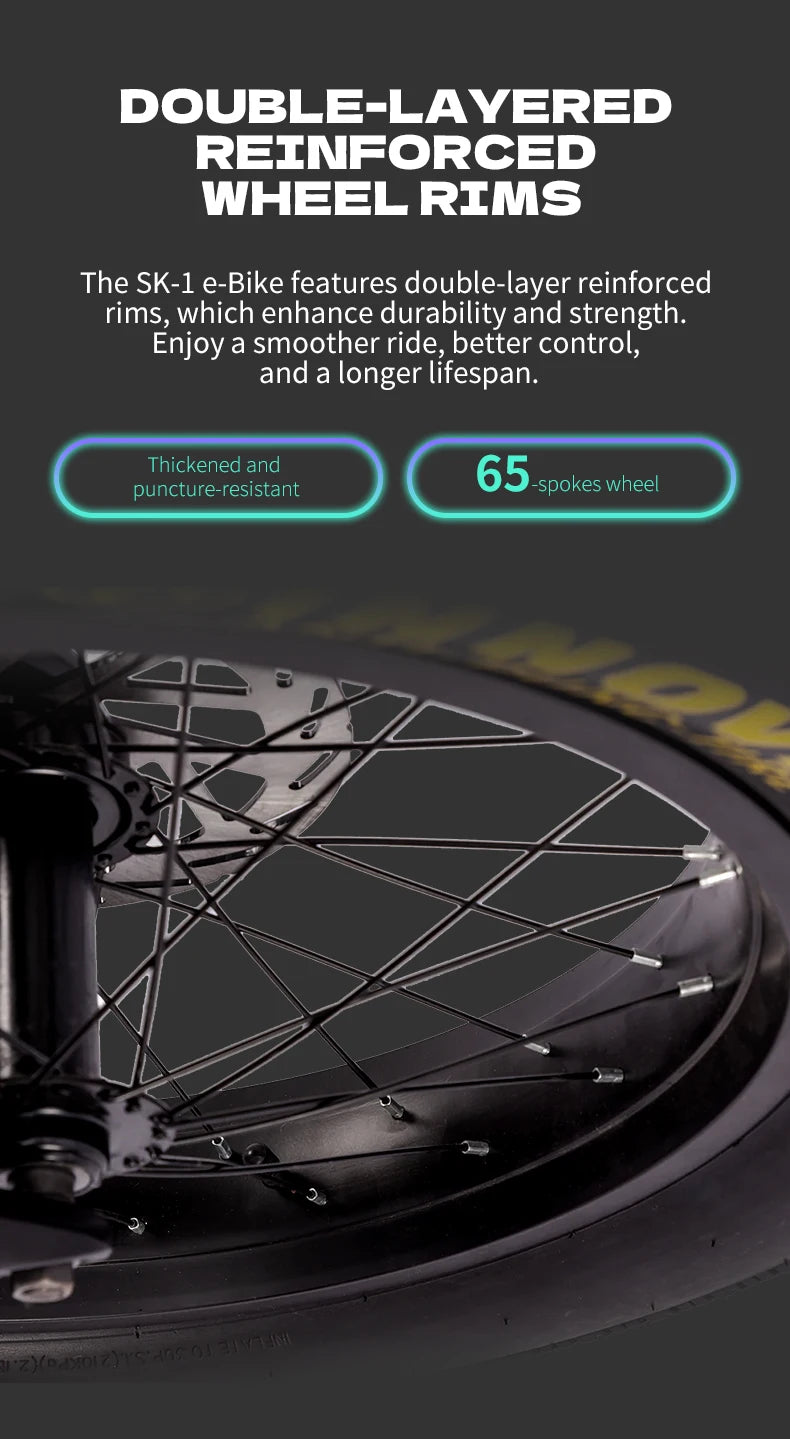

| Tire model |
20" x 5" Innova anti-puncture tires, with double layer reinforced alluminum alloy rims, 65-spoke |

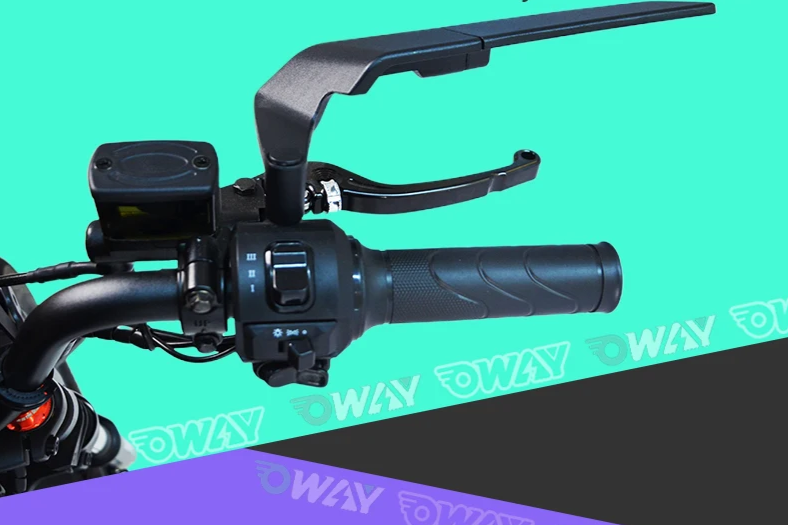

| Handlebar |
Multi-function combination switch |
| Ground clearance |
11" (28cm) |
| eBike Size & Weight |
Size: 72.8" x 43.7" x 32.3" (185cm x 111cm x 82cm); Weight: 150lbs (69kg) |
| Maximum load |
Load: 330 lbs (150kg) |

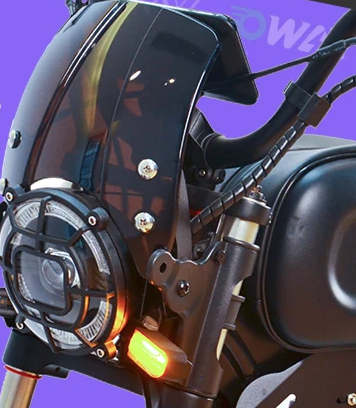

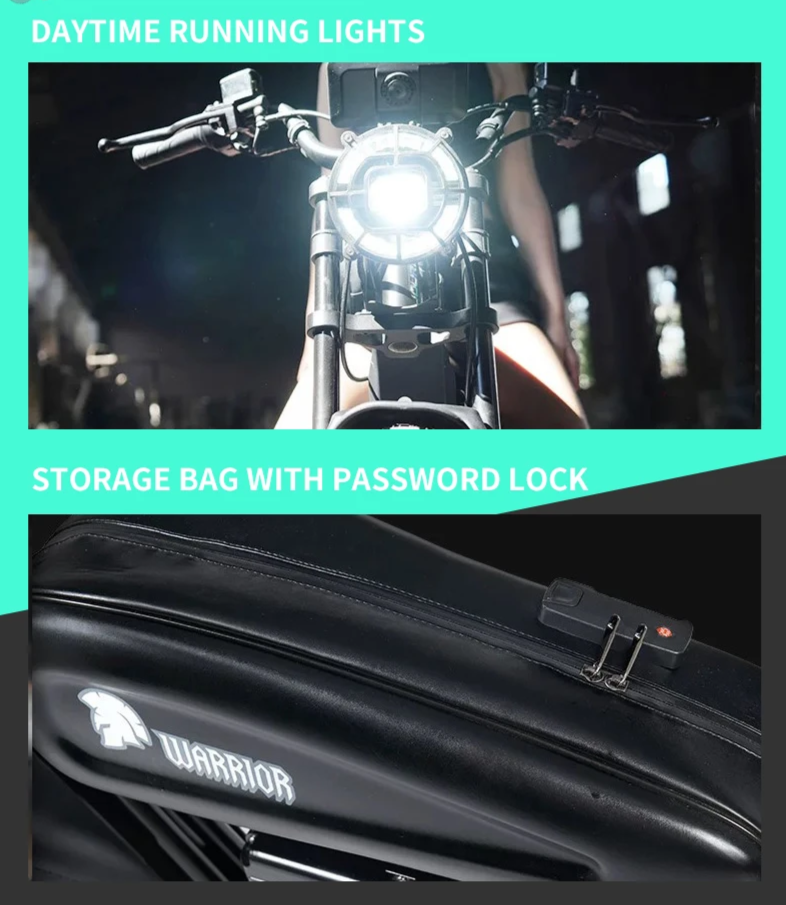

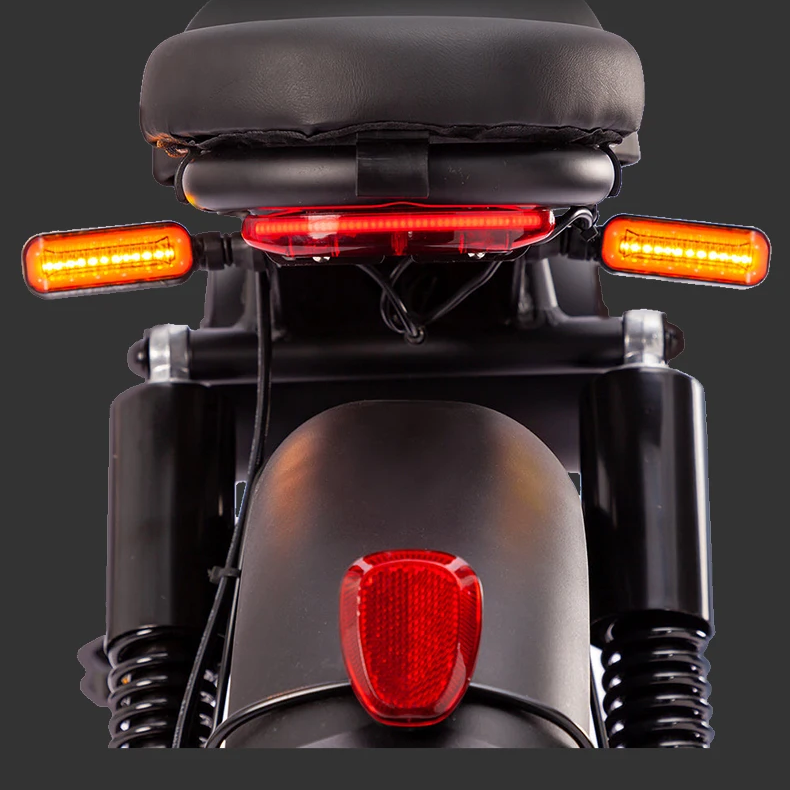

| Lights |
Headlights: aluminum alloy shell LED (high beam); Brake lights; Front and rear rectangular dynamic turn signals |
| Rearview mirror |
fixed wing, adjustable rearview aluminum alloy mirror |
| Speed limit |
One-click speed limit and un-limit |
| POWER & TECH |

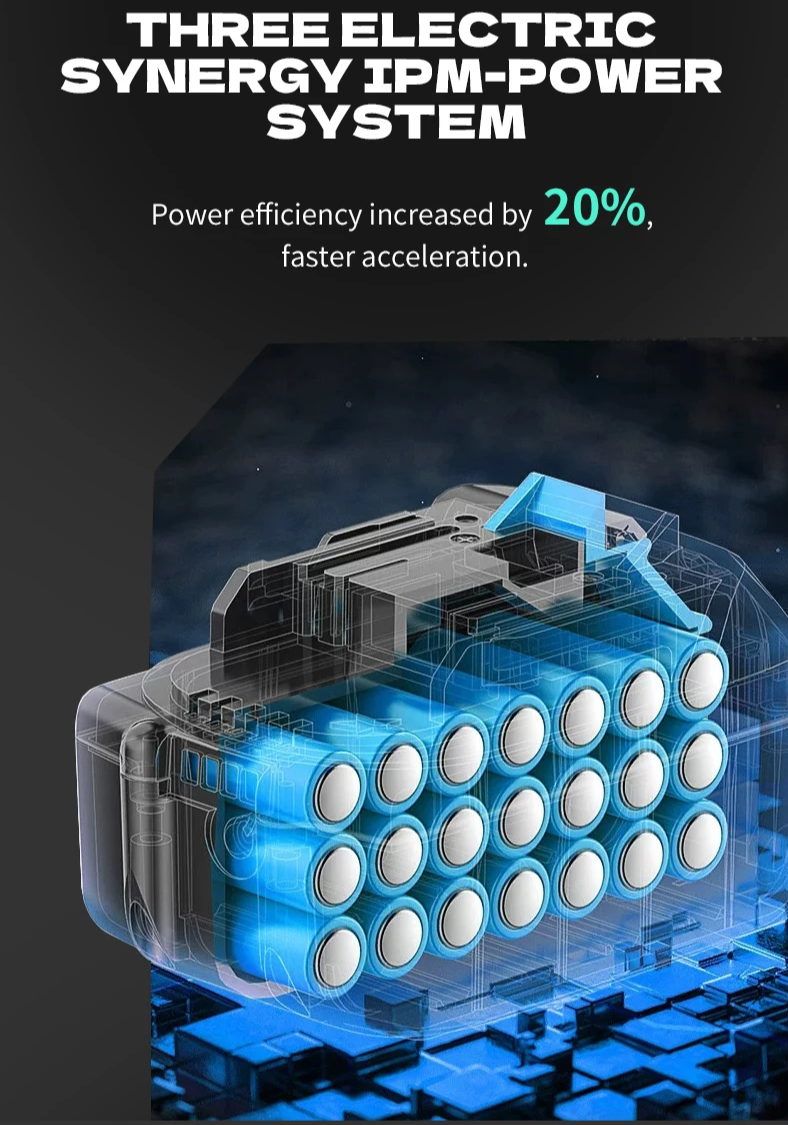

| Battery |
21700 Lithium-ion 60V 45Ah-50Ah, removable. Aluminum alloy battery armor. Location: down tube |
| Charging time |
8-10 hours |
| Charger |
60V 5Ah charger 110V US standard; Plug types: US, Swiss, European, Australian |
| Range Per Power |
50-60 miles (80-100km) |
| Power-on Methods |
Remote control, NFC card, one-key start, phone app (English version, for Apple and Android) |
| Controller |
60V Brushless 12-tube large controller |
| Recharge Plug Type: |
US, Swiss, European, Australian |
| Material |
Alluminum Alloy: Frame, Hub, Curved Handlebar Cross, Foot pedal; Leather Seat with 31.9" (81cm) height |

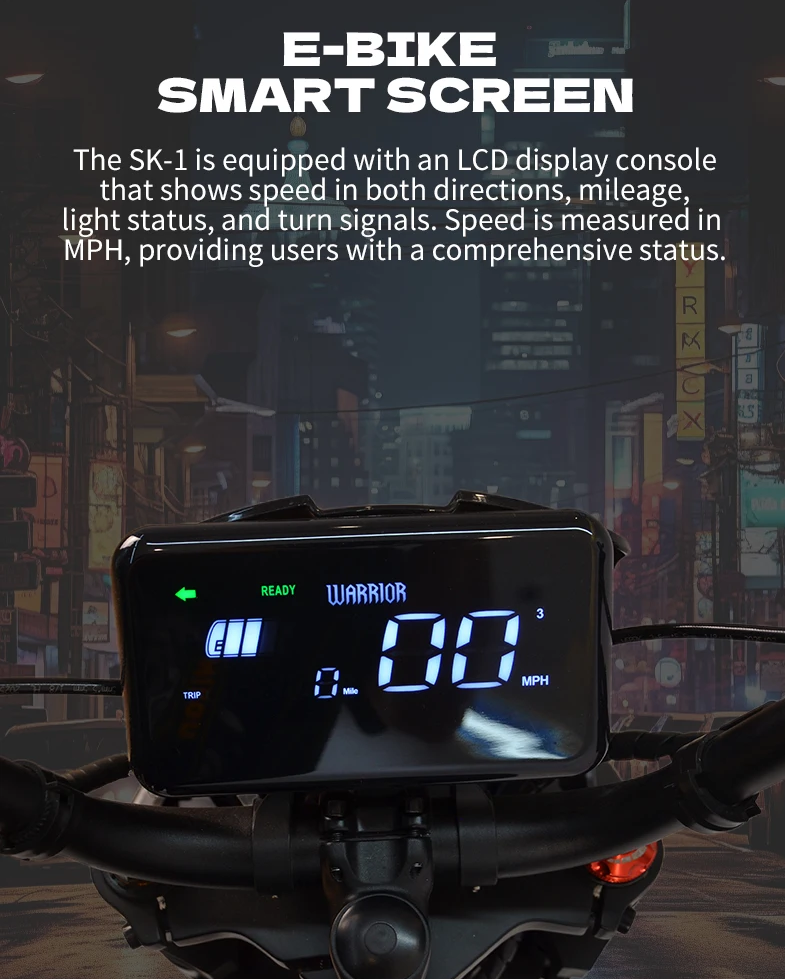

| Display |
LCD display console showing speed, mileage, lights status, and turn signals for both directions. Speed is in MPH |
| Anti-theft alarm |
bicycle detects any movement on the rear wheel, sounds an alarm and generates resistance |
| Speaker |
Bluetooth Connect |
| Remote control |
Remote control switch with power lock |
| Style |
Standard, Sport, Urban, Rural, Classic |
| Color |
Black |
| Chain |
Olive-shape chain |

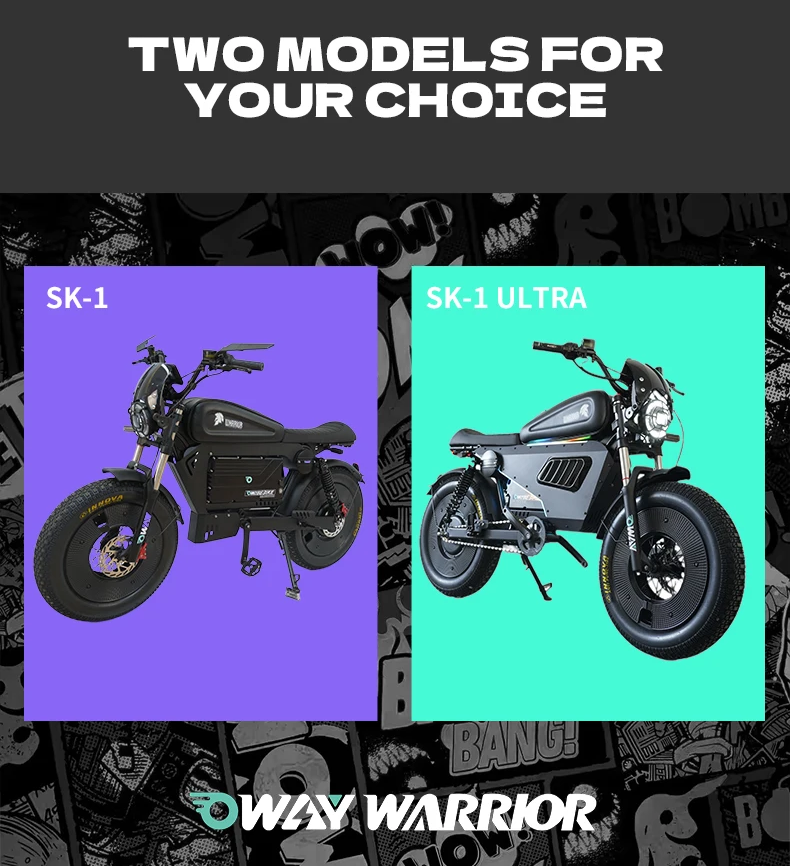

| Brand Name |
OWAY Warrior |
| Package Contents |
1x e-bike |
| 1x charger |
| 1x toolkit |
| 1x pair of pedals |
| 1x storage bag |
| 1x rear seat |
| 1x wrench |
| 1x manual |
